Classic authorizers in ApiGateway are useful resources for managing simple authorizations for your users. In some cases, we need to add complex security features such as:

Validating custom scopes.
Checking specific claims before executing or accessing AWS resources.

For this, you need to use a lambda authorizer. In this article, we will cover how to deploy a custom lambda authorizer in a serverless application.

Project Creation

Comprehensive information about project creation can be found here in a dedicated post.

You now have a template.yml file in the sam-project folder, which we will edit.

Project Deployment

Open the template.yml file and replace it with the following code:

1AWSTemplateFormatVersion: '2010-09-09'
2Transform: AWS::Serverless-2016-10-31
3Description: >
4  lambda-authorizer
5
6  Sample SAM Template for lambda-authorizer
7
8# More info about Globals: https://github.com/awslabs/serverless-application-model/blob/master/docs/globals.rst
9Globals:
10  Function:
11    Timeout: 3
12
13Parameters:
14  Domain:
15    Type: String
16    Description: The custom domain part for OAuth 2.0
17    Default: "lambda-authorizer"
18
19Resources:
20
21  UserPool:
22    Type: "AWS::Cognito::UserPool"
23    Properties:
24      UserPoolName: userpool
25      MfaConfiguration: "OFF"
26      UserPoolAddOns:
27        AdvancedSecurityMode: "AUDIT"
28
29  UserPoolResourceServer:
30    Type: AWS::Cognito::UserPoolResourceServer
31    Properties:
32      UserPoolId: !Ref UserPool
33      Identifier: api.pixelo.fr
34      Name: api.pixelo.fr
35      Scopes:
36      - ScopeName: "read"
37        ScopeDescription: "Read"
38
39  UserPoolClient:
40    Type: AWS::Cognito::UserPoolClient
41    DependsOn:
42      - UserPoolResourceServer
43    Properties:
44      ClientName: AppClient
45      UserPoolId: !Ref UserPool
46      AllowedOAuthFlowsUserPoolClient: true
47      GenerateSecret: true
48      CallbackURLs:
49        - 'https://oauth.pstmn.io/v1/callback'
50        - 'https://oauth.pstmn.io/v1/browser-callback'
51      AllowedOAuthFlows:
52        - code
53      AllowedOAuthScopes:
54        - api.pixelo.fr/read
55        - email
56        - openid
57        - profile
58      SupportedIdentityProviders:
59        - COGNITO
60
61  UserPoolDomain:
62    Type: AWS::Cognito::UserPoolDomain
63    Properties:
64      Domain: !Ref Domain
65      UserPoolId: !Ref UserPool
66
67
68  ApiGateway:
69    Type: AWS::Serverless::Api
70    Properties:
71      StageName: dev
72      OpenApiVersion: '2.0'
73      Description: API supporting the application
74      Auth:
75        DefaultAuthorizer: MyLambdaTokenAuthorizer
76        Authorizers:
77          MyLambdaTokenAuthorizer:
78            FunctionArn: !GetAtt MyAuthFunction.Arn
79
80  HelloWorldFunction:
81    Type: AWS::Serverless::Function # More info about Function Resource: https://github.com/awslabs/serverless-application-model/blob/master/versions/2016-10-31.md#awsserverlessfunction
82    Properties:
83      FunctionName: HelloFct
84      CodeUri: hello-world/
85      Handler: app.lambdaHandler
86      Runtime: nodejs20.x
87      Architectures:
88        - x86_64
89      Events:
90        HelloWorld:
91          Type: Api # More info about API Event Source: https://github.com/awslabs/serverless-application-model/blob/master/versions/2016-10-31.md#api
92          Properties:
93            Path: /hello
94            Method: get
95            RestApiId: !Ref ApiGateway
96    Metadata: # Manage esbuild properties
97      BuildMethod: esbuild
98      BuildProperties:
99        Minify: true
100        Target: "es2020"
101        Sourcemap: true
102        EntryPoints:
103        - app.ts
104
105  MyAuthFunction:
106    Type: AWS::Serverless::Function
107    Properties:
108      CodeUri: hello-world/
109      Handler: authorizer.handler
110      Runtime: nodejs18.x
111      Architectures:
112        - x86_64
113      Policies:
114        - Statement:
115            - Sid: LambdaLogGroup
116              Action:
117                - logs:CreateLogGroup
118                - logs:CreateLogStream
119                - logs:PutLogEvents
120              Effect: Allow
121              Resource:
122                - !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/*
123      Environment:
124        Variables:
125          NODE_OPTIONS: --enable-source-maps
126          CLIENT_ID: !Ref UserPoolClient
127          USER_POOL_ID: !Ref UserPool
128
129    Metadata: # Manage esbuild properties
130      BuildMethod: esbuild
131      BuildProperties:
132        Minify: true
133        Target: "es2020"
134        Sourcemap: true
135        EntryPoints:
136        - authorizer.ts
137
138Outputs:
139  # ServerlessRestApi is an implicit API created out of Events key under Serverless::Function
140  # Find out more about other implicit resources you can reference within SAM
141  # https://github.com/awslabs/serverless-application-model/blob/master/docs/internals/generated_resources.rst#api
142  UserPoolId:
143    Value: !Ref UserPool
144    Description: The UserPool ID
145  UserPoolClientId:
146    Value: !Ref UserPoolClient
147    Description: The Client ID
148  UserPoolClientSecret:
149    Value: !GetAtt UserPoolClient.ClientSecret
150    Description: The Client Secret
151  UserPoolDomain:
152    Value: !Sub "https://${Domain}.auth.${AWS::Region}.amazoncognito.com"
153    Description: The OAuth 2.0 domain to use for user authentication
154  HelloWorldApi:
155    Description: "API Gateway endpoint URL for Prod stage for Hello World function"
156    Value: !Sub "https://${ApiGateway}.execute-api.${AWS::Region}.amazonaws.com/dev/hello/"
157  HelloWorldFunction:
158    Description: "Hello World Lambda Function ARN"
159    Value: !GetAtt HelloWorldFunction.Arn
160  HelloWorldFunctionIamRole:
161    Description: "Implicit IAM Role created for Hello World function"
162    Value: !GetAtt HelloWorldFunctionRole.Arn

With the following command, you will deploy theses AWS resources:

Lambda Authorizer

The lambda authorizer below is a nodejs function that uses the following libraries from the AWS SDK:

NPM installation :

1cd hello-word
2npm install aws-jwt-verify
3npm install aws-lambda -D

Add the file authorizer.ts in the hello-world/ folder and include the following code:

1import { APIGatewayAuthorizerResult, APIGatewayTokenAuthorizerEvent } from 'aws-lambda';
2import { CognitoJwtVerifier } from 'aws-jwt-verify';
3
4export const handler = async (event: APIGatewayTokenAuthorizerEvent): Promise<APIGatewayAuthorizerResult> => {
5    const token = event.authorizationToken;
6    const methodArn = event.methodArn;
7
8    // Verifier that expects valid access tokens:
9    const verifier = CognitoJwtVerifier.create({
10        userPoolId: `${process.env.USER_POOL_ID}`,
11        tokenUse: 'access',
12        clientId: `${process.env.CLIENT_ID}`,
13    });
14
15    let success = false;
16
17    try {
18        const payload = await verifier.verify(token);
19        console.log('Token is valid. Payload:', payload);
20        success = true;
21    } catch {
22        console.log('Token not valid!');
23        success = false;
24    }
25
26    // Return an authorization response indicating whether the request is authorized
27    return {
28        principalId: 'user',
29        policyDocument: {
30            Version: '2012-10-17',
31            Statement: [
32                {
33                    Action: 'execute-api:Invoke',
34                    Effect: success ? 'Allow' : 'Deny',
35                    Resource: methodArn,
36                },
37            ],
38        },
39    };
40};

IAM

Ensure your credentials and IAM permissions include the following policies:

1{
2    "Sid": "APIGateway",
3    "Effect": "Allow",
4    "Action": [
5        "apigateway:*"
6    ],
7    "Resource": [
8        "arn:aws:apigateway:*::*"
9    ]
10},
11{
12    "Sid": "Cognito",
13    "Effect": "Allow",
14    "Action": [
15        "cognito-idp:*"
16    ],
17    "Resource": [
18        "*"
19    ]
20},
21{
22    "Sid": "Lambda",
23    "Effect": "Allow",
24    "Action": [
25        "lambda:*"
26    ],
27    "Resource": [
28        "arn:aws:lambda:*:xxx:function:*",
29        "arn:aws:lambda:*:xxx:layer:*"
30    ]
31}

WARNING : These policies are not best practice and should be adjusted according to your security requirements.

Deploy

Deploy the project with the following commands:

1sam build
2sam deploy --stack-name lambda-authorizer

Test the lambda authorizer

To simplify testing, we will use Postman

Test unauthorized user

If you make an HTTP call to the HelloWorldApi URL available in the stack's Output parameters, you should get a 401 or 403 HTTP response with the body:

1{
2    "message": "Unauthorized"
3}

Or, if an invalid token is presented:

1{
2    "Message": "User is not authorized to access this resource with an explicit deny"
3}

This makes sense because you are not authenticated.

Create a user

To be authenticated, create a user in the Cognito UserPool.

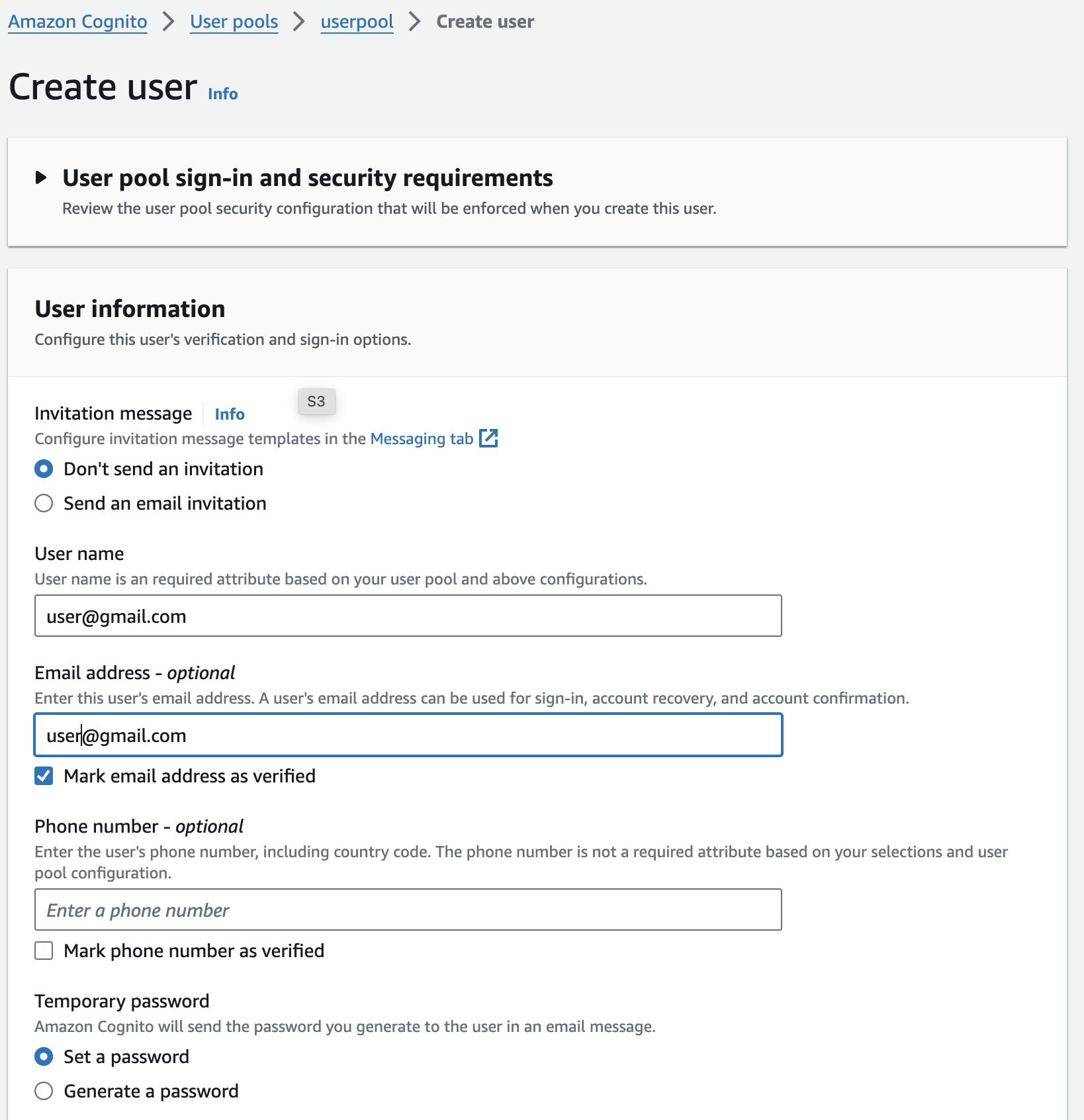

AWS Cognito

Confirm it as verified and remember the password.

Configure OAuth 2.0 in Postman

Now, configure the OAuth 2.0 server in Postman to authenticate the previously created user.

Fill in the following fields in the Authorization tab:

1- Auth Type : OAuth 2.0
2- Grant type : Authorization code
3- Auth URL : https://${Domain}.auth.eu-west-1.amazoncognito.com/login
4- Access Token URL : https://${Domain}.auth.eu-west-1.amazoncognito.com/oauth2/token
5- Client ID : ${UserPoolClientId}
6- Client Secret : ${UserPoolClientSecret}
7- Scope : api.pixelo.fr/read openid

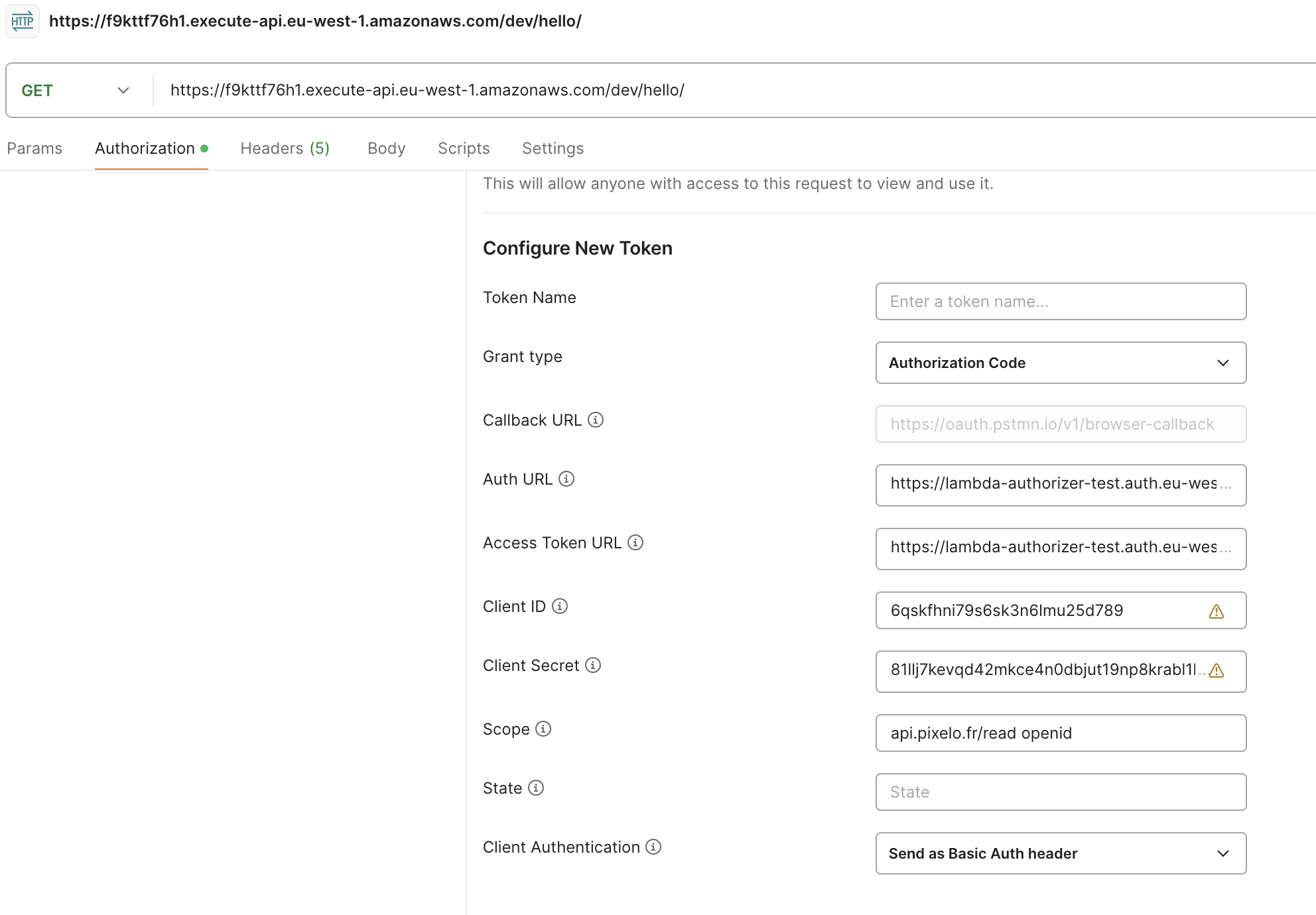

OAuth 2.0 Postman

Click on the Get New Access Token button.

You should be redirected to the login form of the OAuth 2.0 server previously deployed.

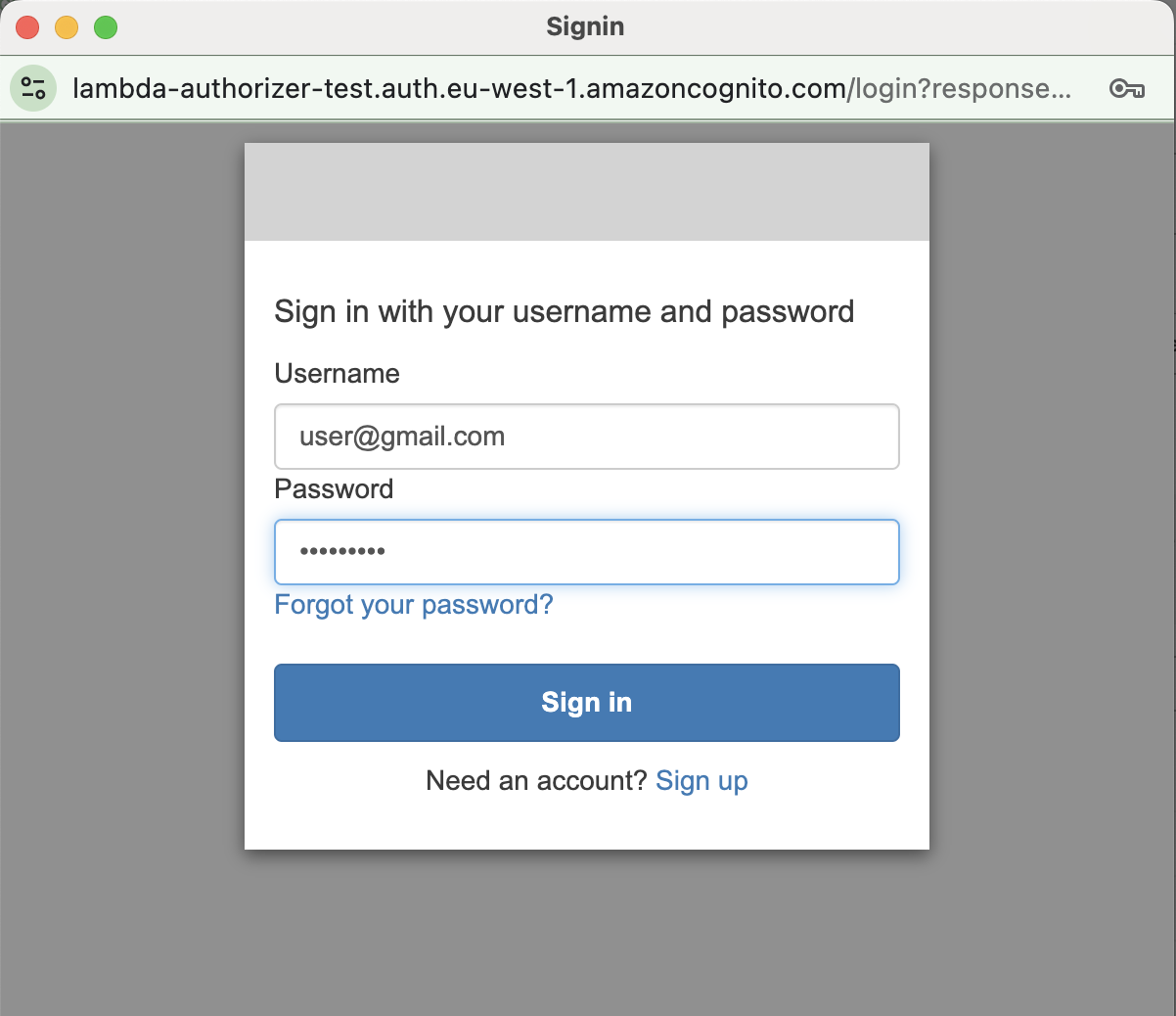

AWS Cognito Login

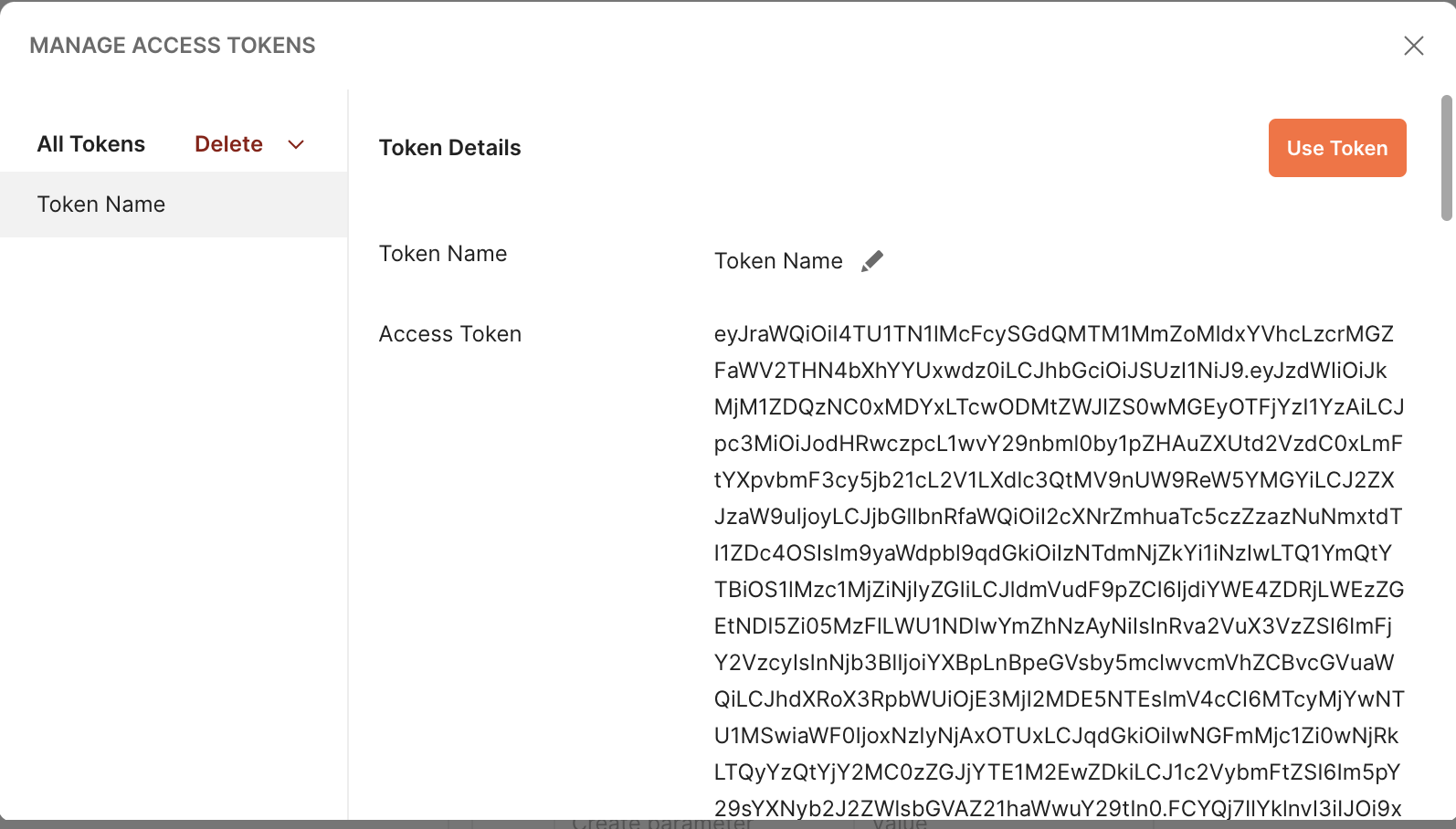

Postman use token

Test authorized user

If you make another HTTP call to the HelloWorldApi lambda-authorizer, you should get a 200 HTTP response with the body:

1{
2    "message": "hello world"
3}

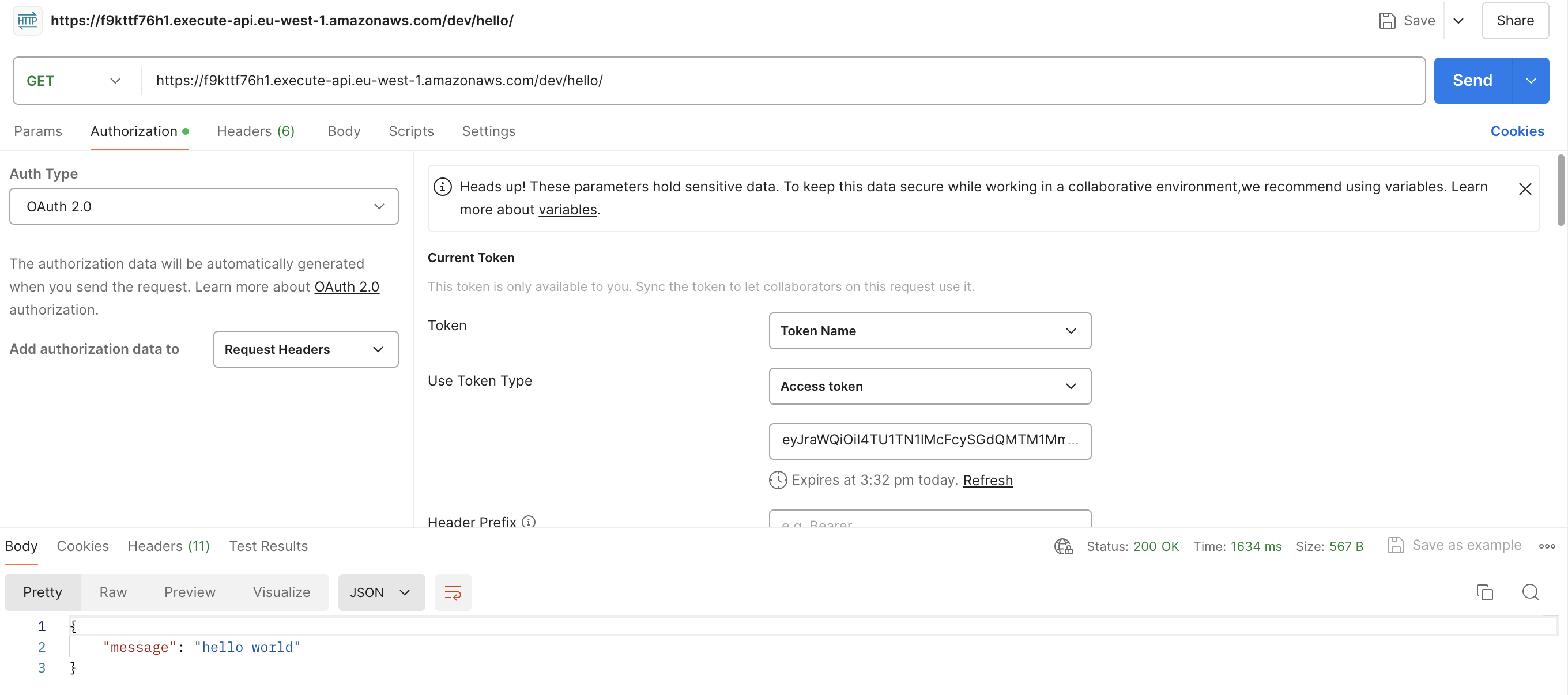

Postman authorized

Congratulations! You are now authorized to call the lambda function.

Summary

In this post, we learned how to deploy a lambda authorizer in ApiGateway using the serverless framework.

WARNING: Remember to clean up AWS resources

1sam delete
